Compatible with Nintendo Switch Pro Wireless Gamepad Controller

For Nintendo Switch Pro Wireless Gamepad Game Controller 1. Controller features 1) This product is compatible with SWH hosts and also supports Windows computers.
2) Wireless connection, strong anti-interference ability and stable connection signal.
3) Built-in high-capacity polymer lithium battery, which can be used for a long time after being fully charged.
4) The product supports the function of HOME key to wake up the SWH host and wake up the controller.
5) The built-in gyroscope of this product supports motion sensing function;
6) This product has built-in dual motors to support dual vibration function.
7) The product supports the TURBO one-button burst function and the cancellation of the TURBO burst function.
8) The game can also be played normally when the handle is charged.
9) This handle can be upgraded by connecting the computer to update software.

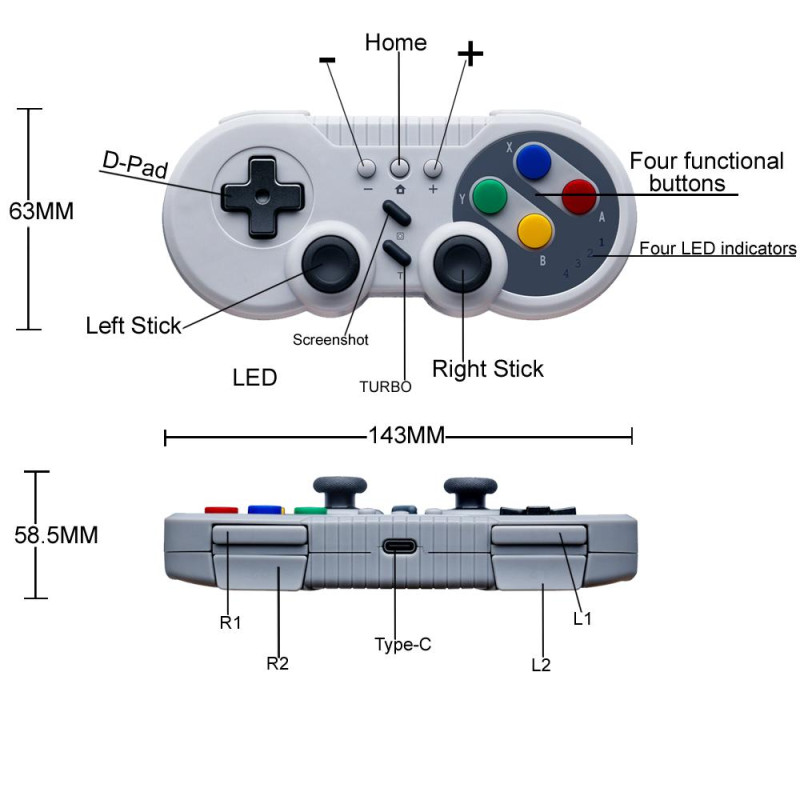

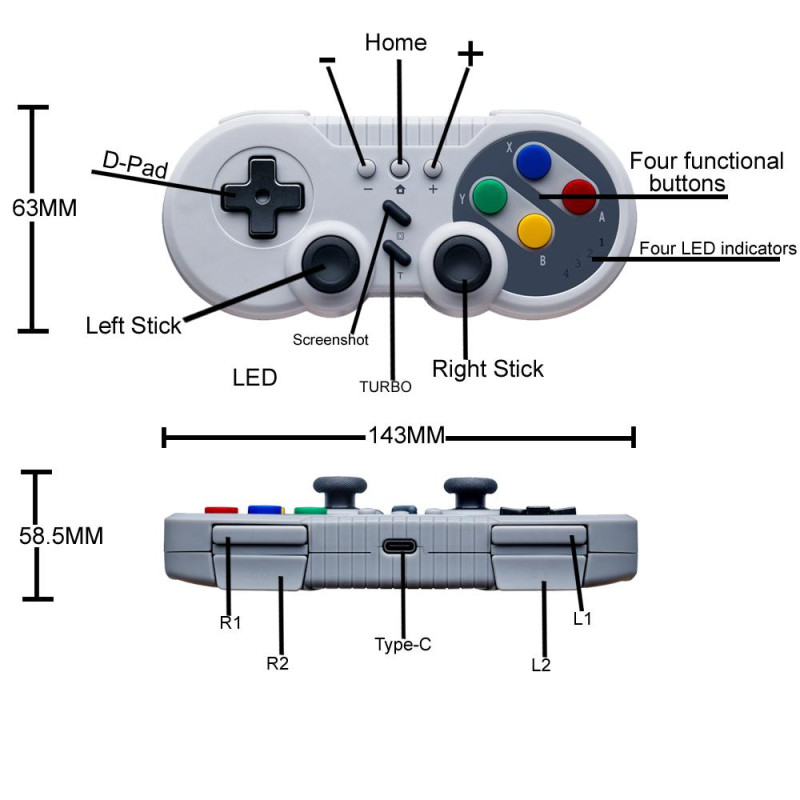

2. Key brief description
1) HOME key: Power controller on or execute commands from SWH console.
2) D-Pad: Up, down, left and right. It can be easily operated on eight directions.
3) Function control keys: A, B, X, Y. Perfect key design, sensitive and quick for finger operation.
4) Left stick and Right stick: Neoteric 3D stick can be operated precisely on 360° all-round.
5) Functional keys: L1, R1, L2, R2. Trigger and shoulder keys perform quick response function.
6) Screenshot key: Take screenshot and store.
7) TURBO key: First press and hold any key of the function keys (A/B/X/Y/L1/R1/L2/R2) then press “TURBO” key once to repeat and accelerate action in a game. Press “TURBO” key once again to cancel the repeating and accelerating function.
8) Reset key: Short press this key in “RESET” hole to disconnect controller from console and reset the controller.
3. Connection instruction

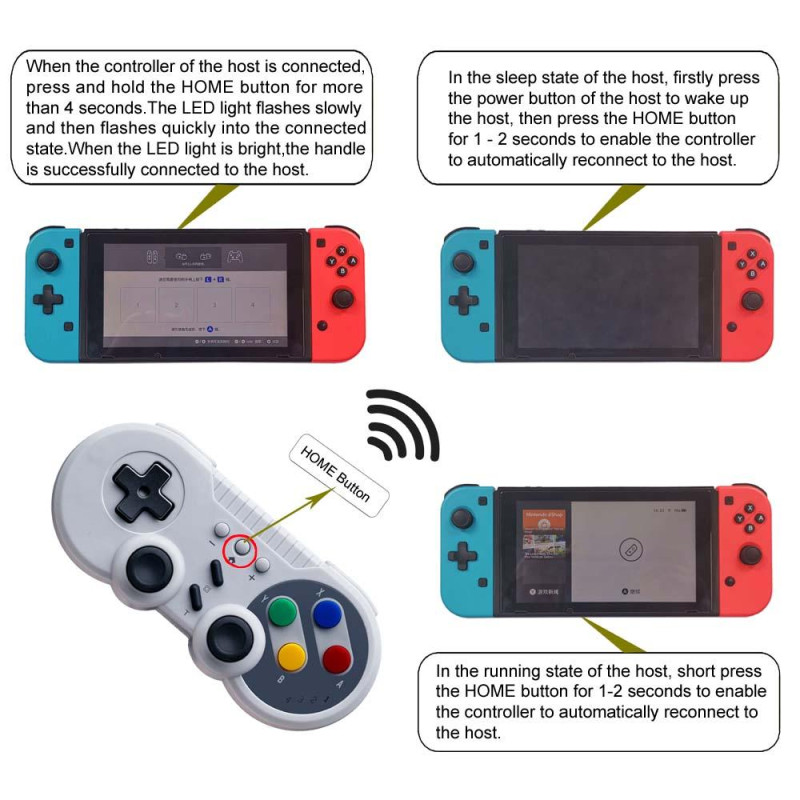

1) Connecting to SWH console via wireless:
A. Connect the controller to the host for the first time: turn on the SWH host, on the main menu interface of the host, touch and click "handle" ? "change grip" to enter the host pairing mode interface; on the controller, long press the controller HOME button 4 Turn on the handle in seconds, the 4 LEDs will flash quickly, and enter the search state. When a single (or multiple) LEDs of the handle are always on, it means that the handle and the host are successfully paired, and then press the HOME button to return to the main interface for operation.
B. Connect the handle to the host again: When the host is on, short press the HOME button to turn on the handle, and the handle will automatically connect with the host.
C. The handle is connected back to wake up the host:
The host screen is turned off, and the handle automatically sleeps. In about 5 minutes, if no button is pressed on the handle, the handle will automatically sleep.
1. Wake up the handle: in the sleep state of the handle, short press the HOME button or other buttons to wake up the handle, the LED light flashes circularly, and the handle and the host automatically reconnect.
2. Wake up the host: In the sleep state of the host (not in flight mode), short press the HOME button of the controller for 1 second to wake up the host, and the handle and the host will automatically reconnect.
Remarks: 1. The keys that can wake up the controller: HOME key, A\B\Y\X, direction key, - key, + key, L1, R1 key, screenshot key.
2. The key that can wake up the host: HOME key.
3. Short press the button in the reset hole for 1 second to close the handle. Press and hold the HOME button for 10 seconds to turn off the handle.
2) Connecting to SWH Console via USB cable
On the main interface of a SWH console, click “Settings” ? “Controllers and Sensors” ? “Pro Controller Wired Communication” ? “ON” to open Pro controller wired connection; connect a controller to the USB port of the console holder through a USB cable, LED 4 in the controller starts blinking slowly then LED 1 in the controller will be blinking slowly after the controller is connected to the console.
3) Connecting to Windows PC via USB cable
First you need to download the X-360 driver and install it on your Windows PC. Connect the controller to the Windows PC via a USB cable. The four LEDs in the controller start to flash slowly, and then the controller driver is automatically installed to the PC. The corresponding LED will flash slowly and the controller can be used. Support for X-360 mode games.
The X-360 driver is available on the internet.
Note: Under the wired connection of X-360 mode, it has vibration function but not gyro axis function.
4) Handle motor vibration intensity adjustment function:
1. Press the T key and the up key of the cross key at the same time to enhance the vibration.
2. Press the T key and the down key of the cross key at the same time to weaken the vibration.
3. When adjusting, there will be one vibration to prompt different vibration levels.
4. There are 4 vibration effects in total, the default is the strongest, and the lowest is to turn off the vibration; the product supports the vibration adjustment memory function. That is the last adjustment setting is saved.
4. LED indication description
1) Four LEDs blinking quickly and circularly: This controller is searching for wireless devices to be paired; this controller is connecting back to console via wireless code match.
2) LED(s) solid bright: This controller is connecting to console normally via wireless.

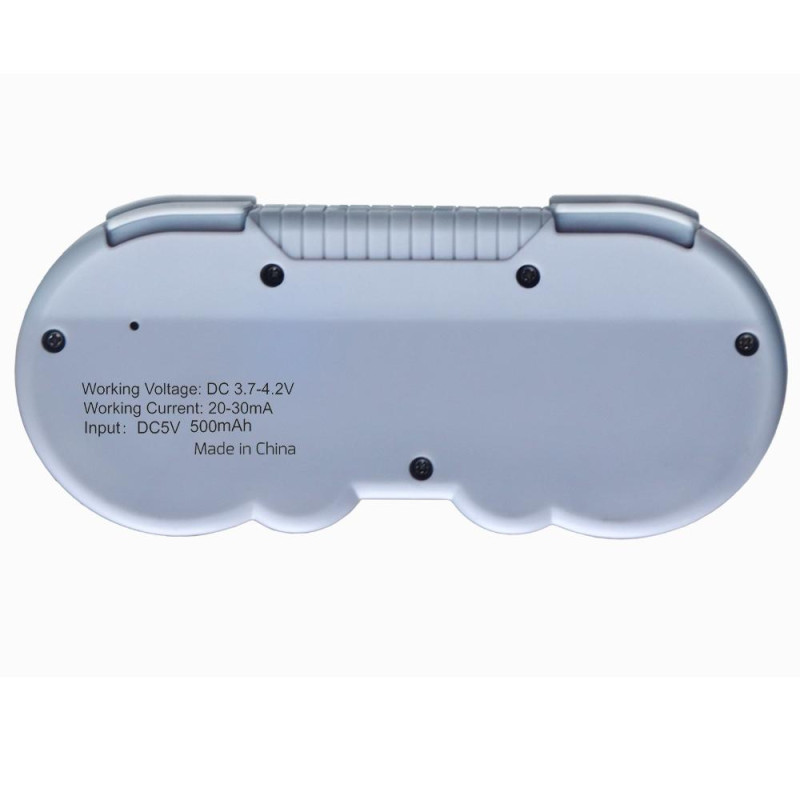

3) LED(s) blinking quickly: This controller battery voltage is lower than 3.6V; if the voltage is lower than 3.4V, the controller will be shut off automatically and can’t be powered on.
4) LED(s) blinking slowly: This controller is connecting to console via USB cable; when this controller is being charged via connecting to a charger, four LEDs are blinking slowly and simultaneously, the four LEDs will be off after fully charged.
