4 Channel DVR Kit Surveillance Camera HD Security CCTV System for Outdoor Use

4 Channel H265 AHD DVR Kit Surveillance Camera High Definition Outdoor Security CCTV System

【High-Definition Surveillance】 4-channel 1080N HD coaxial surveillance system for crystal-clear indoor and outdoor security.

【Advanced Compression】 H.265 compression format ensures efficient storage and smooth playback of high-quality footage.

【Flexible Channel Modes】 Supports various channel mode combinations, including 1080N analog and 1080P digital inputs.

【Multiple Output Options】 Features 1080P VGA and HD outputs for versatile display connection.

【Intelligent Recording】 Offers scheduled, manual and motion detection recording modes for comprehensive surveillance.

【Remote Access】 Compatible with VMS client and mobile apps for iPhone and Android, enabling remote monitoring and control.

【Weatherproof Design】 Suitable for both indoor and outdoor installation with waterproof cameras for protection in all weather conditions.

Specifications:
Model: TVB3704BL-S1
Main control chip: MC6630
AD chip: 2816
Memory: 1G
Compression format: H.265
Operating system: Embedded Linux operating system
Input: 4 channels
Preview: 4*1080N@25fps
Encoding: 4*1080N@25fps
Decoding: 1*1080N@25fps
Channel mode: Support all channel mode combinations (1080N analog + 1080P digital)
VGA output: 1080P
BNC output: not supported
HD output: 1080P
Audio input: 1 channel
Audio output: 1 channel
Coaxial audio: not supported
Two-way intercom: supported
Number of real-time recording channels: 4 non-real-time
Recording mode: timing, manual, dynamic detection
Number of simultaneous playback channels: 1 channel
Search mode: time search, calendar search, event search, channel search
U disk: supported
USB DVD recorder: Supported
Backup file format: H.26X, AVI
Client: Support VMS
Mobile operating system: Support iPhone, Android
Number of supported hard drives: 1
E-SATA: Not supported
Network port: 10/100Mbps Ethernet (RJ-45)
Network protocol: TCP/IP, DHCP, DDNS, NTP, SMTP
Remote control: Supported
Power supply: DC12V/2A
Working temperature: -10℃~60℃
Working humidity: 10%~90%

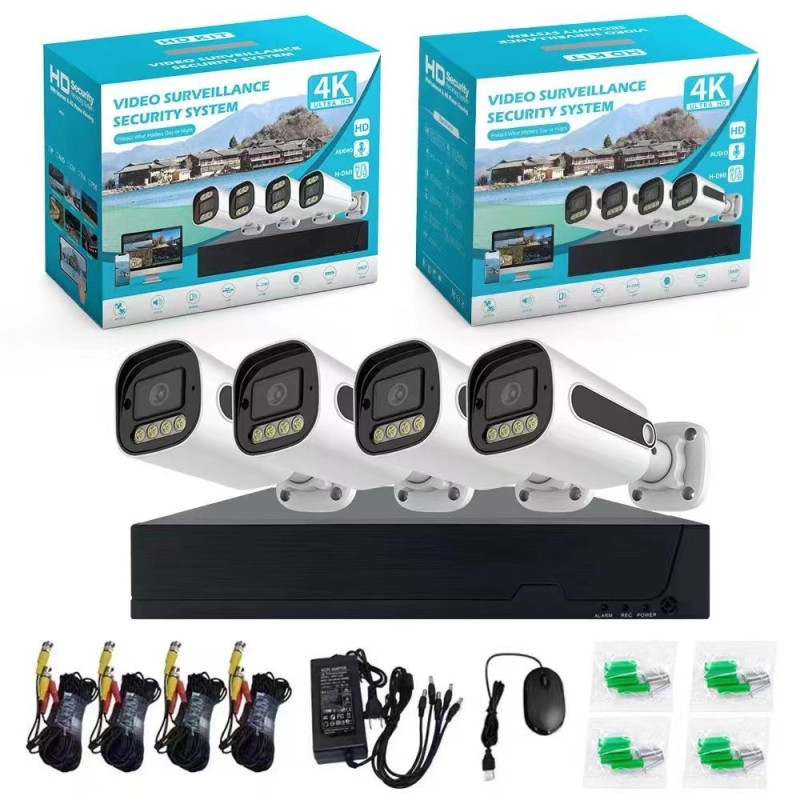

Package included
1 x host
4 x camera
4 x transmission cable
1 x mouse
1 x Octopus Splitter
1 x Screw package
1 x English manual
