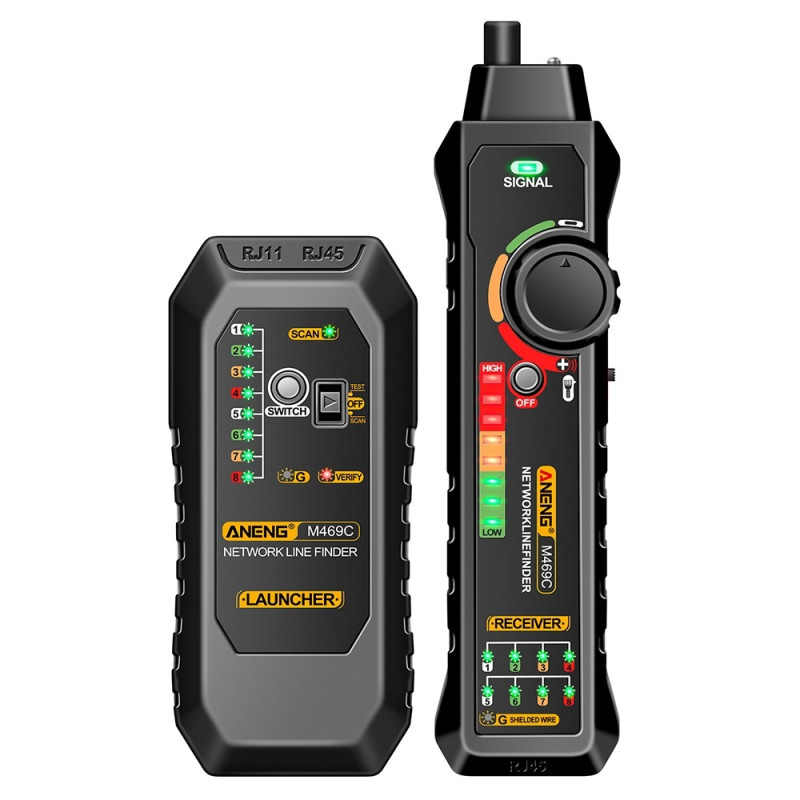

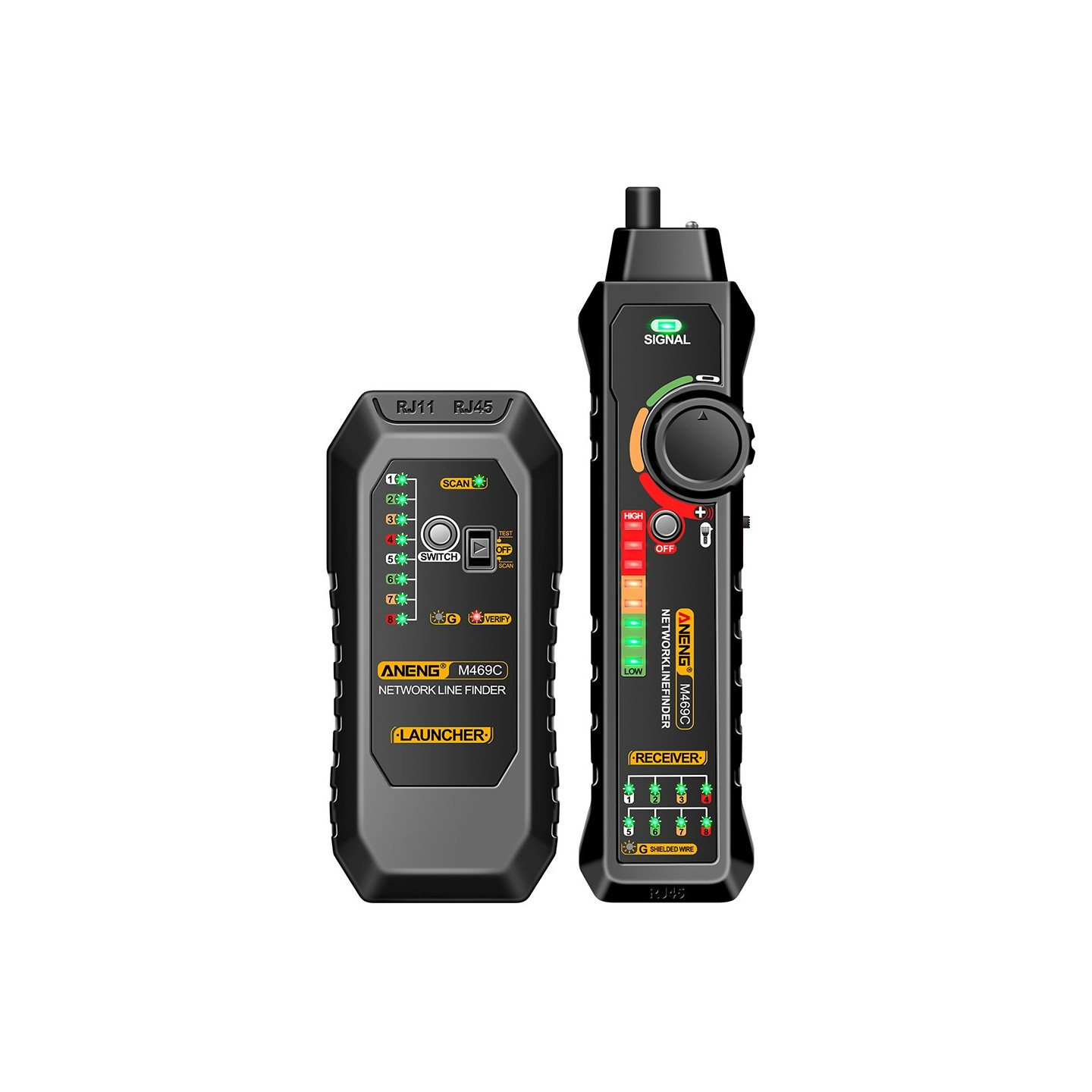

ANENG Network Cable Tester Network Ethernet Wire Tracker Cable Finder

ANENG Network Cable Tester Network Ethernet Wire Tracker Cable Finder - Black Network cable proofreading: Insert the RJ45 network cable into the transmitter and receiver interface, and the transmitter will press the "Align" button. Line sequence lights determine a short in the circuit
Crystal Port: Suitable for RJ45 network cable interface, RJ11 interface, dual core telephone line can be connected via crocodile clip
Measure DC level function: Press and hold "Find Line" and "Switch" for more than 2 seconds, then insert the alligator clip into RJ11. Clamp both ends of the power supply and press the button until the "line sequence light" flashes
Support headphones: Equipped with headphones, adjustable volume for noisy environments

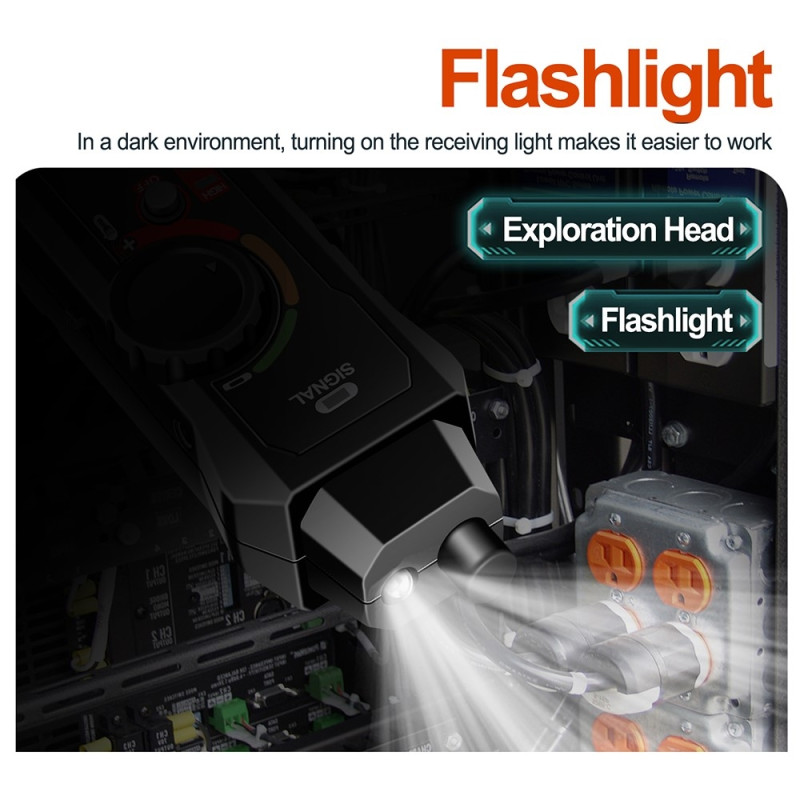

Flashlight function: In a dark environment, it becomes easier to work by turning on the flashlight
Specifications:
Battery used: 6F22 9V battery (not included)
Flashlight: built-in flashlight
Weight: transmitter 62g/receiver 77g
Phone line search function: support
Network cable search: support
Low voltage prompt: support
Open circuit and short circuit test function: support
Interface: RJ11/RJ45
Material: ABS plastic process
Network line search function: support
Network cable calibration function: support
DC level test function: support
Single and double audio switching: support
Lighting/shielded wire: support
Automatic power off: about 1 hour after the power is turned on, the line finder will automatically enter the power off mode
Headphone function: in a noisy environment, you can plug in headphones to work without external interference
The package includes:
1 x transmitter
1 x receiver
1 x RJ11 to Alligator Clip
1 x RJ11 test cable
1 x RJ45 test cable
1 x storage bag
1 x Headphone
1 x English user manual
