LCD Display ATX Power Tester Desktop Computer Power Testing Tool

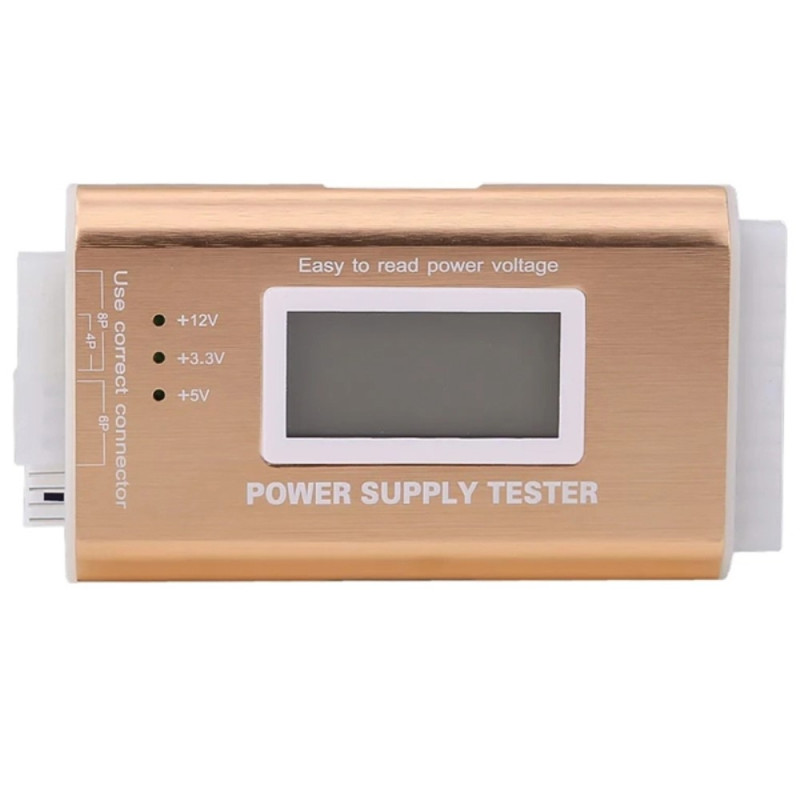

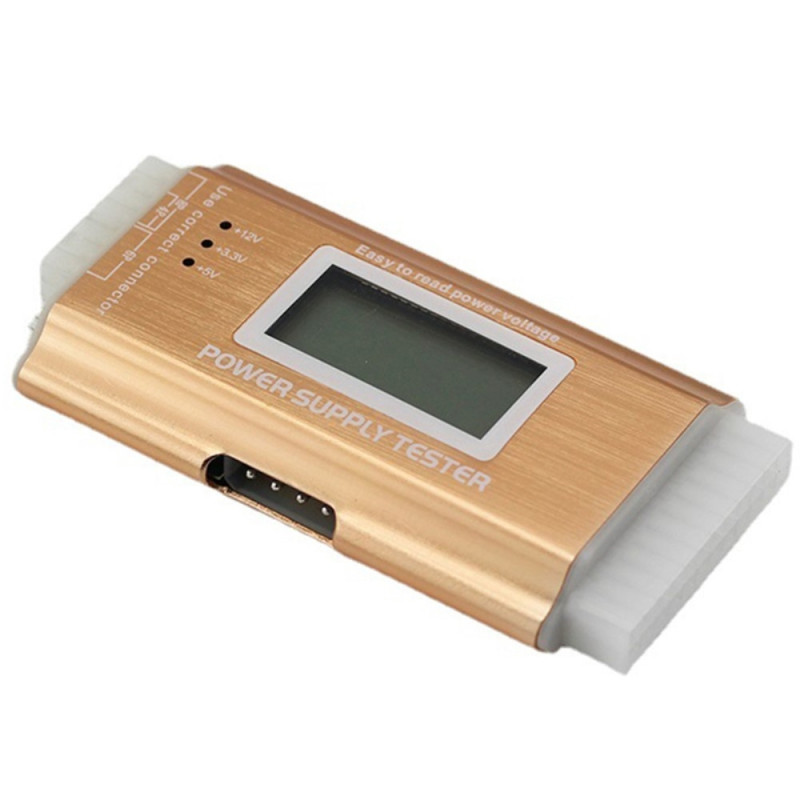

YNS-05 Aluminum Alloy LCD Display ATX Power Tester Desktop Computer Power Testing Tool Just connect the power supply's ATX connector to easily and intuitively know if the output of each power supply is normal

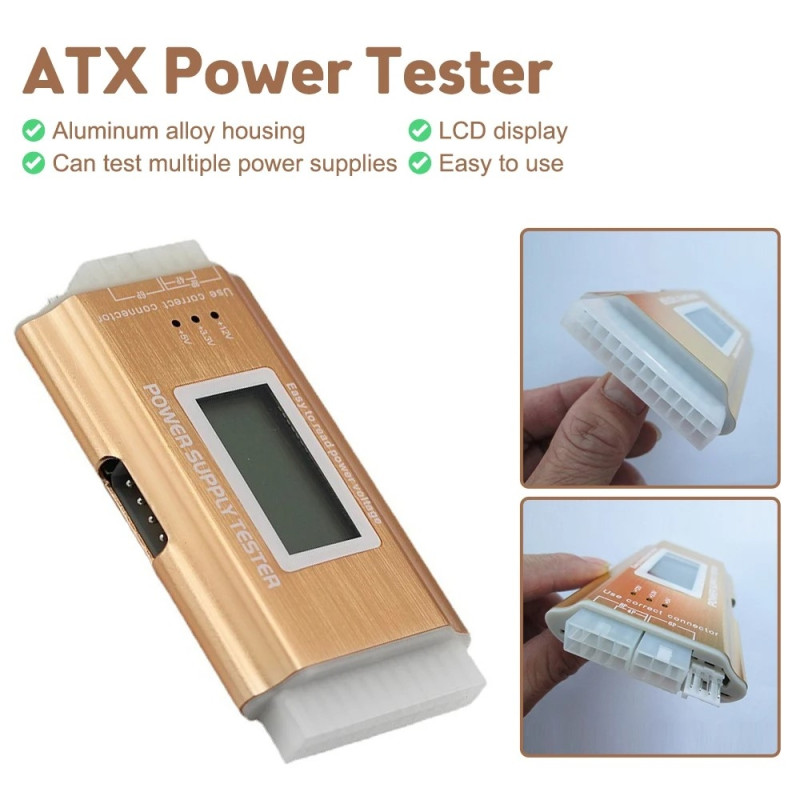

It is a powerful power supply test equipment that can detect ATX, BTX, ITX, TFX computer power supply and can display each group of voltage and PG value on LCD
Discover fast computer power supply convenient instrument

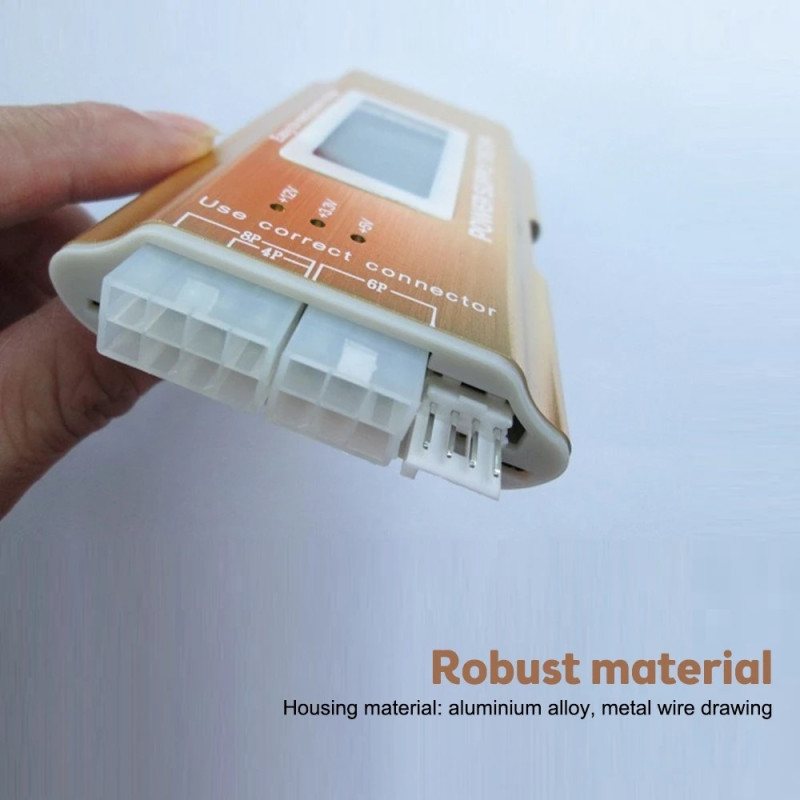

The shell is made of aluminum alloy, which is durable and practical
Specifications:
Voltage input: 20/40PIN (ATX power supply)
Voltage detection: +12V -12V +5V +3.3V 5VSB 12VPG
Connection port: Floppy HDD COROM SATA 4pin (P4) 8pin (Dual-CPU) 6pin (PCI-E)
Weight: 125g (aluminum alloy shell)
Operating method:
1: Insert the unloaded power supply's 20Pin or 24Pin connector into the corresponding position on the power supply tester. Turn on the power supply, and two "beep" sounds will be heard simultaneously.
If the values of each group do not flash or alarm, it means that the output of this power source is normal.
If the corresponding voltage or PG value is displayed as a flashing alarm mode, it means that this power supply is a faulty power supply! For test-related values, see the following table
(Hint: If you only connect 20Pin or 24Pin interface tester, the screen will alarm (+12V2) and show LL. The LL shown here is for testing 4P or 6P/8P. If it is not connected, you can ignore it Or just connect a group
Other large 4P (hard disk interface), small 4P (floppy drive interface), 4P/8P (CPU interface), 6P (graphics card interface), SATA interface, these interfaces must be plugged in when testing. If you are not testing, you can leave them disabled
Connect the large 4P (hard disk interface), the small 4P (floppy drive interface) tester, +12V and +5V display lights on the left (if the lights are not lit, it means that this group of lines is faulty)
Plug in 4P/8P (CPU interface), 6P (graphic card interface) test The tester screen (+12V2) shows the test voltage (flashing alarm if there is an error)
When the SATA interface tester is connected, the +12V, +5V and +3.3V indicator lights on the left are lit (if the lights are off, it means that this group of lines is faulty. Some manufacturers' SATA power interface does not have +3, 3V voltage output)
Note: The +3.3V LED may not light up when the SATA interface tester is connected, because the SATA power interfaces on the market now have 4 or 5 wires. First check if your power SATA interface has 4 or 5 wires. If it has 4 wires, there is no +3.3V output. Only 5 wires have +3.3V output. When using, try not to hot-plug the 24Pin interface. (Must plug in 24Pin before power on).
The package contains:
1 x Aluminum Alloy LCD Screen ATX Power Tester
Other not included
